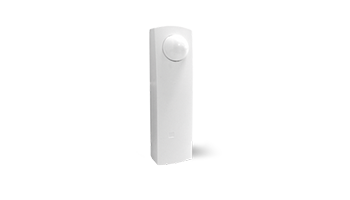

AMC Infrared detector IF800/T



Wireless External digital passive infrared curtain detector. Adjustable range 1-5m, Two-way communication with operating frequency 868.3 MHz, FSK modulation, 128-bit AES encrypted variable code. Maximum range in direct visibility 500m. Double PIR element. Optimized operation mode to extend battery life, in "armored" mode sends status and alarm, when the panel is deactivated sends only status in 20min. Sent status: Battery level, signal level, alarm, tamper, I / O status. Training with built-in button or serial number. Tamper on the lid. 1x Input for external contact. Consumption: 6.7μA (stanby), 17mA (alarm), Battery: 1 / 2AA, 3.6V, battery life ~ 4 years. Dimensions: 37x130x37mm. Operating temperature: 5 ° ~ 40 ° C. Degree of protection IP54. Option: IF 800 TM in brown color.



Weight 0.100 Kgr
