AMC Hybrid control panel X412 expandable to 64 zones, KIT-509



Hybrid control panel X412 expandable up to 64 zones, built-in 4 wired zones, expandable up to 12 (16 with keyboard zones) or up to 64 wireless zones. Outputs: 4x PGM programmable output 100mA OC Negative, expandable up to 8 with Output relay expander and / or keyboards, 2x Relay NO / NC (2A / DC30V) output, 1x Output control siren with plus drop, 1x output for piezo siren , 1x Tamper zone entrance, 1x Box tamper entrance. Supports division of 4x partitions, 4x Groups. Supports Double and Triple ATZ + Tamper, Single, Double and Triple EOL. Supports 4x Keyboards, 2x Wireless Extenders, 4x BUS Access Control Module. Memory for 32 users, 1000 events. Built-in PSTN dialer, Built-in speaker, Built-in microphone. Interfaces: 1x RS485 BUS, 1x 1x PC Com, 1x AUX output DC13.8V / 500mA, 1x 500mA output for battery up to 17Ah. Hardware reset on the board. Intuitive user menu in Bulgarian work and programming via keyboard or PC software via USB converter. Ability to add two communication modules IP and / or GPRS module for Management and alarm Pop-Up notifications in the Mobile application AMC Plus + (Android / iOS), AMC cloud without the need for a public IP address. Power supply: AC18V / 87mA. Certificates: EN50131, Security Grade 2, Environmental Class II.

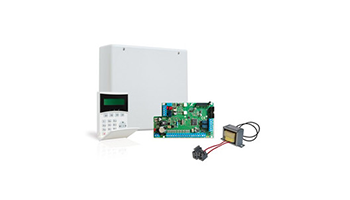

X412 control panel set, K-LCD LIGHT LCD keyboard, PVC box and power transformer with chandelier terminal with fuse. PVC box with dimensions: 300x400x90mm / 1.5kg, space for 1x7Ah batteries and additional modules RF A073-00-01, Ethernet A083-00-02 and GPRS A081-00-01.



Weight 1.960 Kgr
