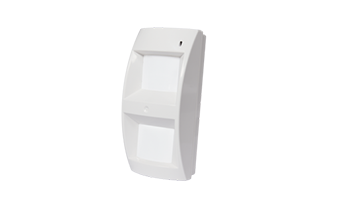

AMC External digital detector Soutdoor 800



Wireless Outdoor digital PIR detector with immunity for animals up to 15kg, range 15m @ 90 °. Two-way communication with operating frequency 868.3 MHz, FSK modulation, 128-bit AES encrypted variable code. Maximum range in direct visibility 850m. Two dual PIR elements operating in circuit "I", Optimized Fresnel lens with 22 zones in 3 levels, Digital signal processing to minimize false alarms. Optimized operation mode to extend battery life, in "armored" mode sends status and alarm, when the panel is deactivated sends only status in 20min. Sent status: Battery level, signal level, alarm, tamper. Training with built-in button or serial number. Temperature compensation, Radio protection: 30V / m (80 / 1000MHz); Programmable range 3-15m from the panel. Tamper on the lid, rear tamper. Diode and sound indication, programmable. Consumption: 12μA (stanby), 26mA (alarm), Battery: 1 / 2AA, 3.6V, battery life ~ 3 years. Dimensions: 85x185x66mm. Degree of protection IP65. Operating temperature: -30 ° ~ 55 ° C. Set of three lenses: volume, horizontal curtain, vertical curtain. Compatible stand SN3.



Weight 0.480 Kgr
