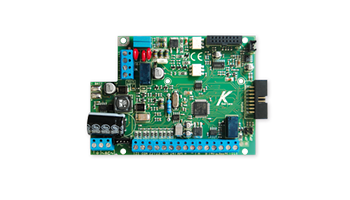

AMC BOARD K4-V 2.00 SC K4



Hybrid control panel K4 expandable up to 64 zones, built-in 4 wired zones, expandable up to 12 (16 with keyboard zones) or up to 64 wireless zones. Outputs: 1x PGM programmable output 100mA OC Negative, expandable up to 4 with Output relay expander and / or keyboards, 1x Relay NO / NC (2A / DC30V) output, 1x Input for tamper zone, 1x Input for tamper box. Supports division of 4x partitions, 4x Groups. Supports Double and Triple ATZ + Tamper, Single, Double and Triple EOL. Supports 4x Keyboards, 2x Wireless Extenders, 4x BUS Access Control Module. Memory for 32 users, 1000 events. Built-in PSTN dialer. Interfaces: 1x RS485 BUS, 1x PC Com, 1x AUX output DC13.8V / 500mA, 1x 500mA output for battery up to 17Ah. Hardware reset on the board. Intuitive user menu in Bulgarian work and programming via keyboard or PC software via USB converter. Possibility to add at the same time two communication modules IP and / or GPRS module for Management and alarm Pop-Up notifications in Mobile application AMC Plus + (Android / iOS), AMC cloud without the need for a public IP address. Power supply: AC18V / 87mA. Certificates: EN50131, Security Grade 2, Environmental Class II.



Weight 0.110 Kgr
