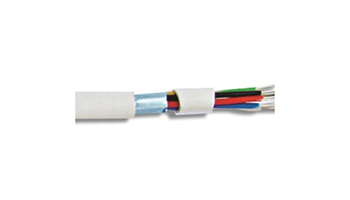

Combined shielded 6 core alarm cable, 8AF50 KT



Combined shielded 6 core alarm cable. Wire section: 6x0.22mm² and 2x0.5mm², outer diameter Ø4.86mm, bending radius 10mm. Material: 100% flexible red copper stranded wire, aluminum foil screen, copper ground wire, PVC insulation. Resistance 0.22mm(7x0.15mm) - 140Ω/km, 0.5mm(16x0.15) - 62Ω/km. Roller 100m. Metric marking. Operating temp.: -10℃~70℃. Wire colors: white, green, red, yellow, gray, orange. Standards: IEC EN 60332-1-2, EN 50575:2014+A1:2016, Eca, CPR Tested.



Weight 0.070 Kgr
