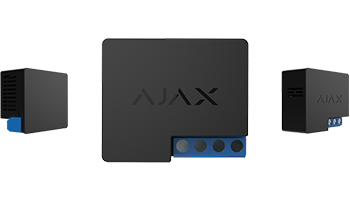

Ajax Relay 11035.19.NC1



Low-current relay to control appliances remotely



Settings versatility and low power consumption make Relay a universal tool for equipment control. Dry contact is not galvanically connected to the device power supply so that it can be used both in low-voltage and household networks. There are bistable and pulse modes. The relay can be easily connected to a power supply unit paired with a backup battery.



Pulse 0.5–255 seconds



Power supply 7–24 V DC



Dry contact



No extra effort



Connecting Relay to the hub takes less than a minute — it's enough to scan a QR code with the Ajax app. The miniature device (39×33×18 mm) fits easily into a junction box, an electrical panel, or a switching unit body. And the flexible external antenna provides stable connectivity.



Always in touch



We developed the Jeweller radio protocol to ensure uninterrupted interaction of all security system devices. The radio protocol uses frames to synchronize device communication, authentication to prevent forgery, and encryption to protect against hacking.



Wireless low current relay type "dry contact". IP20. Power supply 7-36VDC. Maximum current 5A at 36VDC, 13A at 230VAC. Pulse or switching mode. Communication with the panel up to 1000 m.

For indoor installation.



Dimensions 39 × 33 × 18 mm

Weight 25 g
