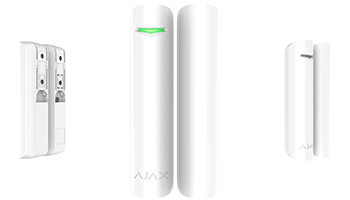

Ajax Door Protect Wireless magnetic detector 7063.03.WH1



DoorProtect



Wireless opening detector that notifies of first signs of room intrusion by means of a broken door or window. It can be mounted on all types of doors including a metal base.



Principle of operation



The device detects the door or window being opened by means of British-made hi-end reed switches on which the magnetic field acts. It can operate in the transmitter mode, sending a signal from the wired sensor to the hub.

Features



The device consists of two modules — detector and magnet. The set includes two magnets: the big magnet is installed at a distance of up to 2 cm, and the small magnet up to 1 cm.



Wireless magnetic detector with additional NC contact up to 1 m wired connection. Communication with the panel up to 1200 m. Housing in white or black. Stand and battery included (CR123A). For indoor installation.





Weight 29 g



Dimensions Diameter: 20 mm

Height: 90 mm
