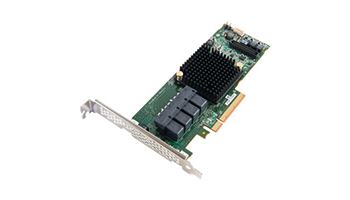

ADAPTEC ASR-71605_SGL RAID Controller ADAPTEC 2274400-R, Internal ASR-71605 16ch 1Gb up to 256 devices (PCI Express 3.0 x8, SAS/SATA III, RAID levels: JBOD, 0, 1, 10, 5, 50, 6, 1E, 60), 2274400-R



Controller (RAID) - Memory

DDR3 SDRAM memory technology

1 GB cache capacity installed

Controller (RAID) - Controller

Controller - Plug-in Card form factor

PCI Express 3.0 x8 expansion slot required

Offers data channel (old) SAS / SATA III

Data transfer rate 6 Gbps

Number of input-output channels 16

Supports 256 devices

Supported RAID level JBOD

Level 0

Level 1

Level 10

Level 5

Level 50

Level 6

Level 1E

Level 60

Controller - Optimized Disk Utilization Features

S.M.A.R.T. Support

SNMP Support

Certificates CE, FCC, UL, C-tick, VCCI, KCC, CNS



Controller (RAID) - Interface

Number of internal Mini SAS interfaces 4



Controller (RAID) - Software

Software in the Drivers set



Controller (RAID) - System requirements

FreeBSD operating system required

Microsoft Windows

RedHat Linux

Sun Solaris

SuSE Linux

Debian



Controller (RAID) - Operating conditions

Max. operating ambient temperature 55 V ° C

Min. operating ambient temperature 0 V ° C



Controller (RAID) - Miscellaneous

Package type With packaging



Controller (RAID) - Dimensions and weight

Height 64 mm

Width 167 mm



Warranty

Warranty products - refundable Yes

Warranty validity criteria Serial number



Logistic information

Package depth (mm) 198 mm

Package height (mm) 42 mm

Package weight - Gross (kg) 0.5 kg

Package width (mm) 300 mm

Packages in cartons 1

Number in package 1
