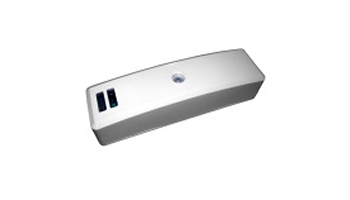

Accumter SEISMO Sensor for vibration detection

Sensor for vibration detection

• Grade 3 Class, Meets EN50131-2-8: 2016 standard
• Automatic sensitivity calibration
• Adjustment of the balance and alarm resistor
• Rear tamper against disassembly
• Jumper to turn off the LED
• Select the number of pulses from the circuit board
• Selecting the number of pulses through a serial port
• Motion sensor in the vertical plane
• Output for fault indication
• Choosing a resistor to indicate a fault
• Balance resistors: 1k, 2k2,4k1,4k7,5k6
• Alarm Resistors: 1k, 2k2,4k1,4k7,5k6,6k8
• Malfunction Resistors: 2k2,3k, 6k8,12k

Dimensions (mm): 88 x 25 x 22.8
