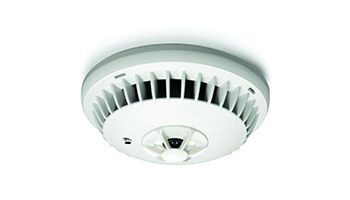

DETECTOMAT PL 3300 OTi heat and optical smoke detector



Adressable heat and optical smoke detector, with insulator, highly sensitive



Intelligent optical and thermal multi sensor detector for Loop 3000 with two optical and two thermal sensors and a bidirectional isolator for earliest fire detection and indication in all environments with difficult ambient conditions, according to EN 54-5/-7 /-17, prEN 54-29 and CEA 4021

• Individual use of the thermal measurement according EN 54-5 in the sensitivity levels 2 to 5 as maximum detector (static --> A1S, A2S) or as rate-of-rise detector with maximum threshold (differential and static --> A1R, A2R)

• Individual change of detector class for sensitivity levels 2 to 5 using Easy Check 3000

• Pollution detection of the smoke measurement chamber by an additional optical path

• Detector sensitivities automatically adapted and programmable

• Integrated measurement-system and algorithm for condensation recognition (Humitec®)

• Intelligent analysis and suppression mode for the elimination of false alarms (e.g.

cigarette smoke)

• Highest reliability by optimal adjustment of the alarm threshold via intelligent algorithm for

the fire detection

• Fault monitoring of the measurement chamber signal and Loop 3000 electronics

• Periodic sensor test

• Automatic and manual addressing on Loop 3000

• Integrated isolator and T-branch option

• Alarm output to control parallel indicator

• Functions completely integrated via Loop 3000 protocol

• Presence and absence switching with selectable sensitivities

• Storage of last maintenance date

• Multicolour LED for alarm (red) and fault (yellow)

• Delivery including dust protection cover for installation phases

• Weight appr. 80 gr
