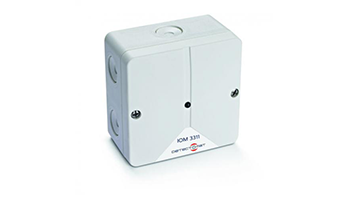

DETECTOMAT IOM 3311 Addressable in/output module



Addressable in/output module for loop 3000



Intelligent Input/Output module for the Loop 3000 with bidirectional isolator according to EN 54-18 and EN 54-17. With one monitored input and one potential free relay output

• Connecting module with one programmable input and one programmable output

• Programming of different switching variants of input and output also with time control for one detector group.

• Monitoring of the operating status via Loop 3000

• Independent programming of input and output

• Automatic and manual addressing on Loop 3000

• Integrated isolator and T-branch option

• Functions completely integrated via Loop 3000-protocol

• Multicolour LED for alarm (red) and fault (yellow)

• Robust wall mounted housing according to IP 54

• Weight appr. 185 gr
